V Series Double Vane Pump - hydraulic pump

VQ double vane pump

Series	Geometric displacement
Series	Shaft end	Cover end
2520V	33~67	7.5~45
2525V	33~67	33~67
3520V	81~121	7.5~45
3525V	81~121	33~67
4520V	138~237	7.5~45
4525V	138~237	33~67
4535V	138~237	81~121

Description:

V series intravane pumps provide volumetric efficiencies of more than 90% and sound levels as low as 62 dB(A) with operating pressures to 207 bar (3000 psi). provide longer life, increased productivity and application versatility. Extremely low sound levels are compatible with the most demanding industrial applications.

Features and Benefits

• High operating pressure capabilities in compact packages provide high power to weight ratios and lower installed costs.
• Low noise characteristics inherent in intravane design enhance operator comfort.

• Double pumps and thru-drive arrangements save installation space and cost by eliminating double shaft extension electric motors or by reducing the number of motors and drive couplings.
• Thru-drive models provide valuable circuit design flexibility, such as having fixed and variable displacement models on a single input drive.
• Inlet and outlet ports can be oriented in four different positions relative to each other, providing greater installation flexibility and ease of machine design.

[vc_tta_tabs] [vc_tta_section title="Ordering Code" tab_id="2033"]

2520V ordering code:
2525V ordering code:
3520V ordering code:
3525V ordering code:
4520V ordering code:
4525V ordering code:
4535V ordering code:

2520V ordering code:

vicker 2520v pump odering code

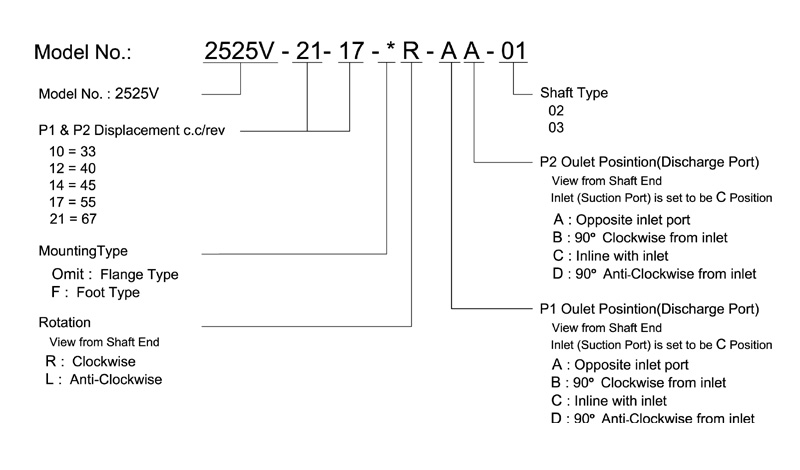

2525V ordering code:

vicker v pump odering code

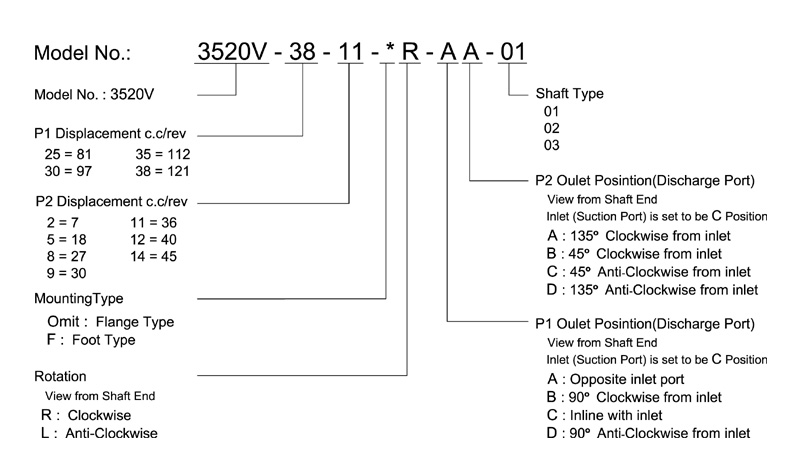

3520V ordering code:

vicker v pump odering code

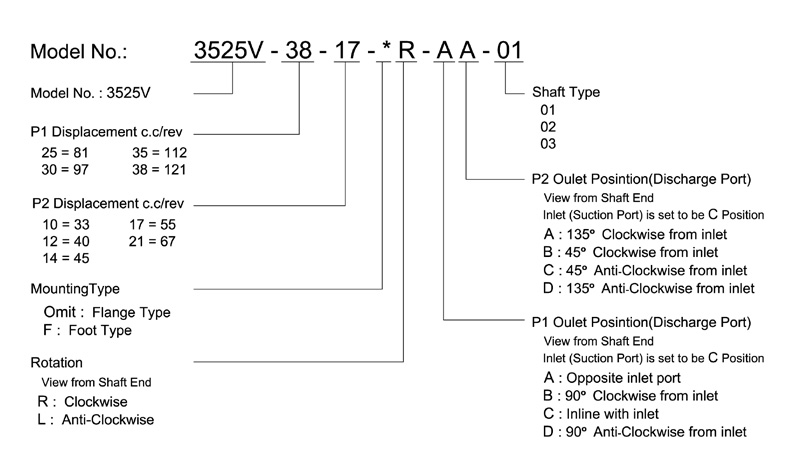

3525V ordering code:

vicker 3525v pump odering code

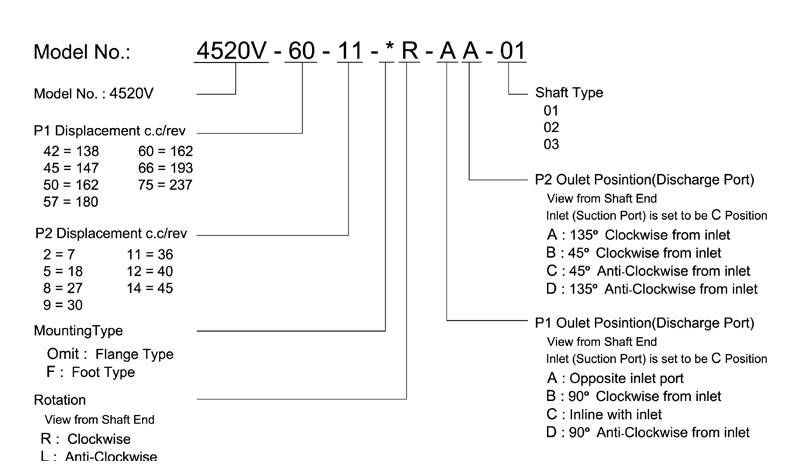

4520V ordering code:

vickers v pump odering code

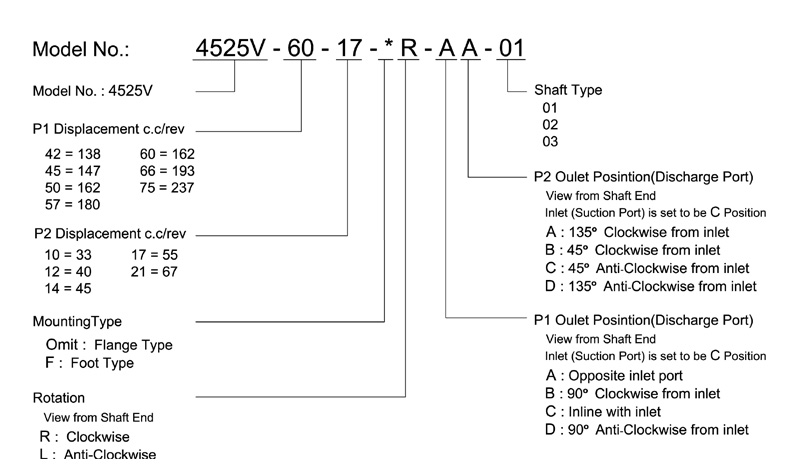

4525V ordering code:

vickers v pump odering code

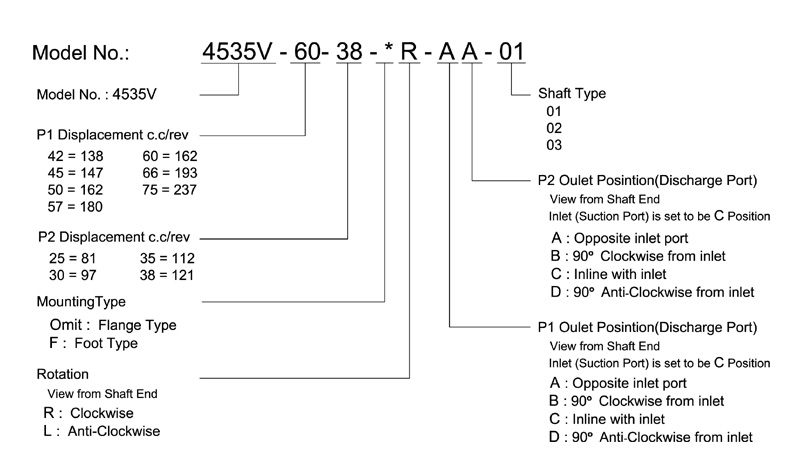

4535V ordering code:

vickers 4535v pump odering code

[/vc_tta_section] [vc_tta_section title="Dimensions" tab_id="2133"]

2520V Dimensions:
2525V Dimensions:
3520V Dimensions:
3525V Dimensions:
4520V Dimensions:
4525V Dimensions:
4535V Dimensions:

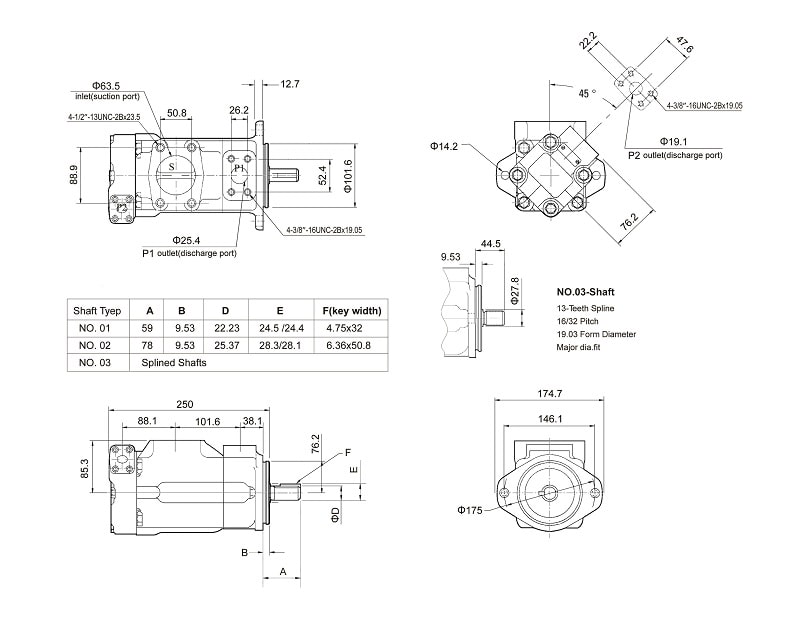

2520V Dimensions:

2520V pump dimension

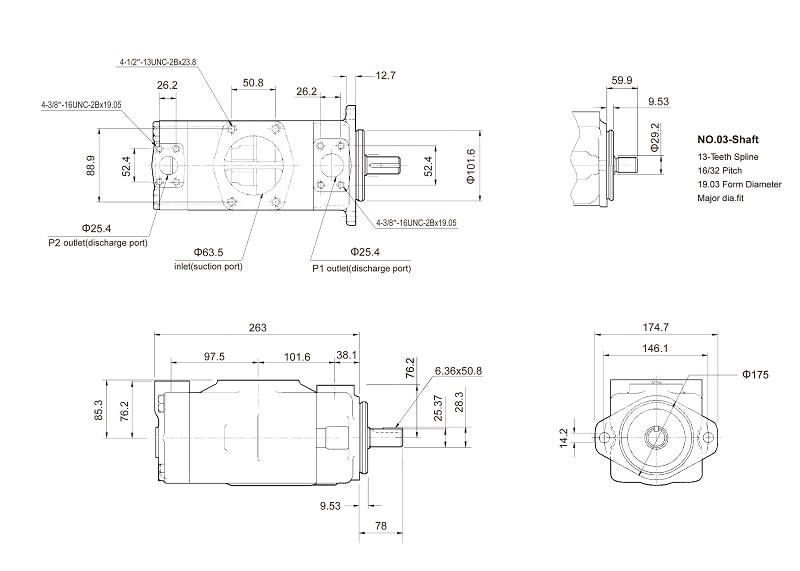

2525V Dimensions:

2525V

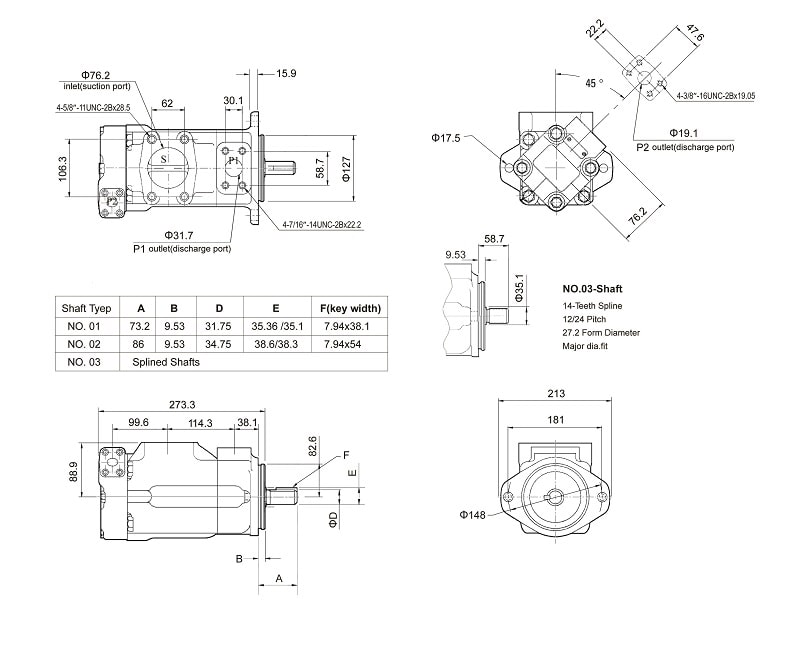

3520V Dimensions:

3520V pump

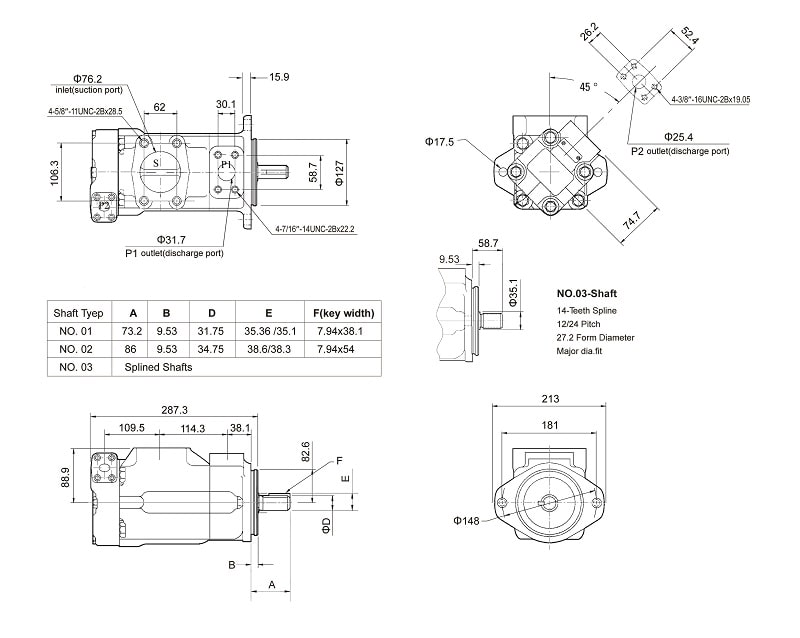

3525V Dimensions:

3525v

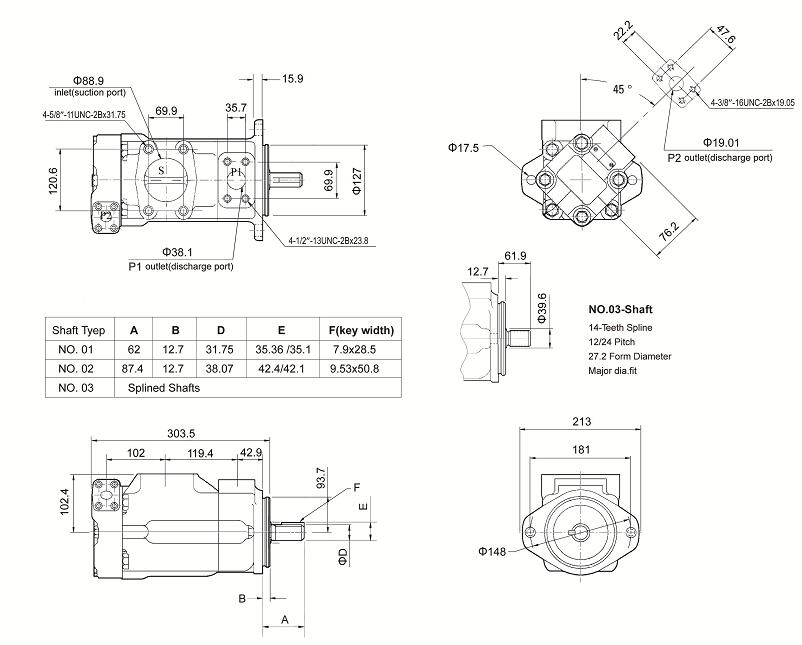

4520V Dimensions:

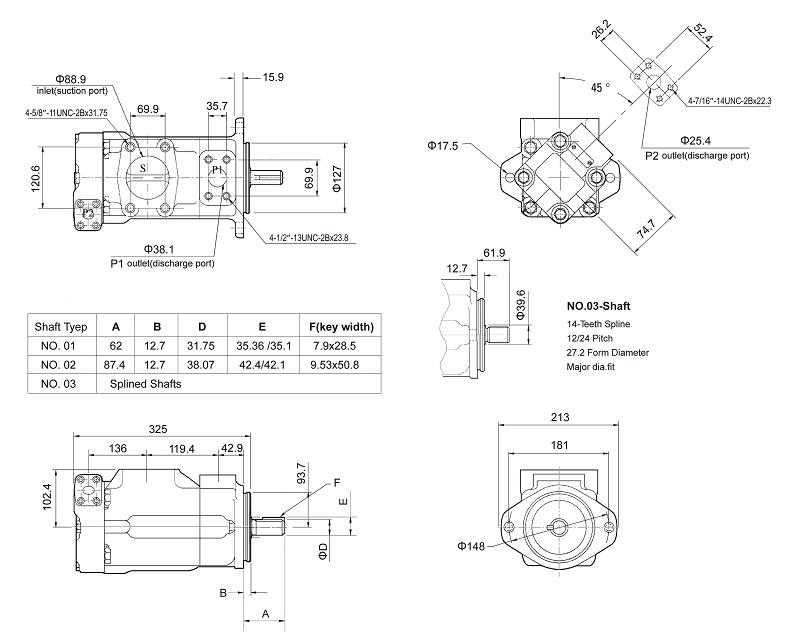

4525V Dimensions:

4525v

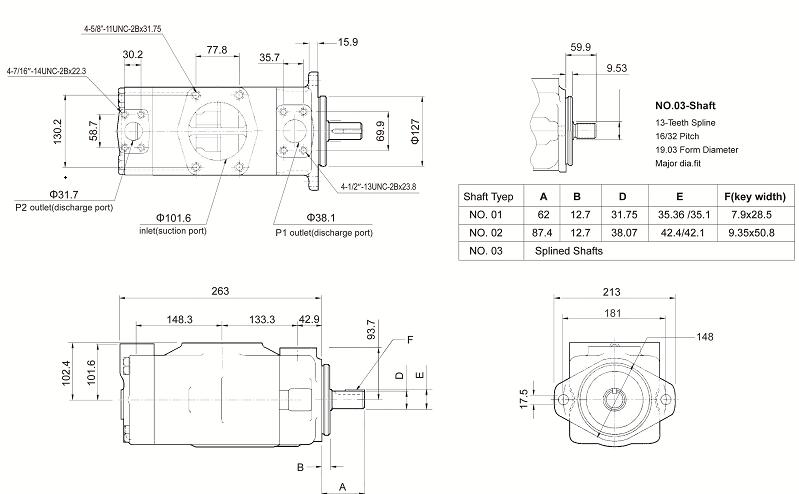

4535V Dimensions:

4535v

[/vc_tta_section] [vc_tta_section title="Specifications" tab_id="2233"]

Model	Displacement code	Geometric displacement mL/r	Max. speed rpm	Max. pressure MPa	Displacement code	Geometric displacement mL/r	Max. speed rpm	Max. pressure MPa	Weight kg
2520V	10	33	1800	17.5	2	7.5	1800	14	12
	12	40			5	17		21
	14	45			8	27
	17	55			9	30
	17	55			11	36
	21	67			12	40		16
	21	67			14	45		14
2525V	10	33	1800	17.5	10	33	1800	17.5	14.8
	12	40			12	40
	14	45			14	45
	17	55			17	55
	21	67			21	67
3520V	25	81	1800	17.5	2	7.5	1800	14	12
	30	97			5	17		21
	35	112			8	27
	38	121			9	30
					11	36
					12	40		16
					14	45		14
3525V	25	81	1800	17.5	10	33	1800	17.5	22.7
	30	97			12	40
	35	112			14	45
	38	121			17	55
	38	121			21	67
4520V	42	138	1800	17.5	2	7.5	1800	14	34
	45	147			5	17		21
	50	162			8	27
	57	180			9	30
	60	193			11	36
	66	212			12	40		16
	75	237		14	14	45		14
4525V	42	138	1800	17.5	10	33	1800	17.5	34
	45	147			12	40
	50	162			14	45
	57	180			17	55
	60	193			21	67
	66	212
	75	237		14
4535V	42	138	1800	17.5	25	81	1800	17.5	34
	45	147			30	97
	50	162			35	112
	57	180			38	121
	60	193
	66	212
	75	237		14

[/vc_tta_section][/vc_tta_tabs]
